Multicore debugging challenges in Zephyr RTOS: Part 2 – Cache coherency

By Bea Ben Ali

Introduction

In part 1 of our three-part blog series, we discussed how to debug and analyze race conditions.

This second installment focuses on how to detect cache coherency issues, which are another common problem in multicore systems with multiple cores that must play well together.

Before we dive in, let’s first review how caches can be organized in a multicore system.

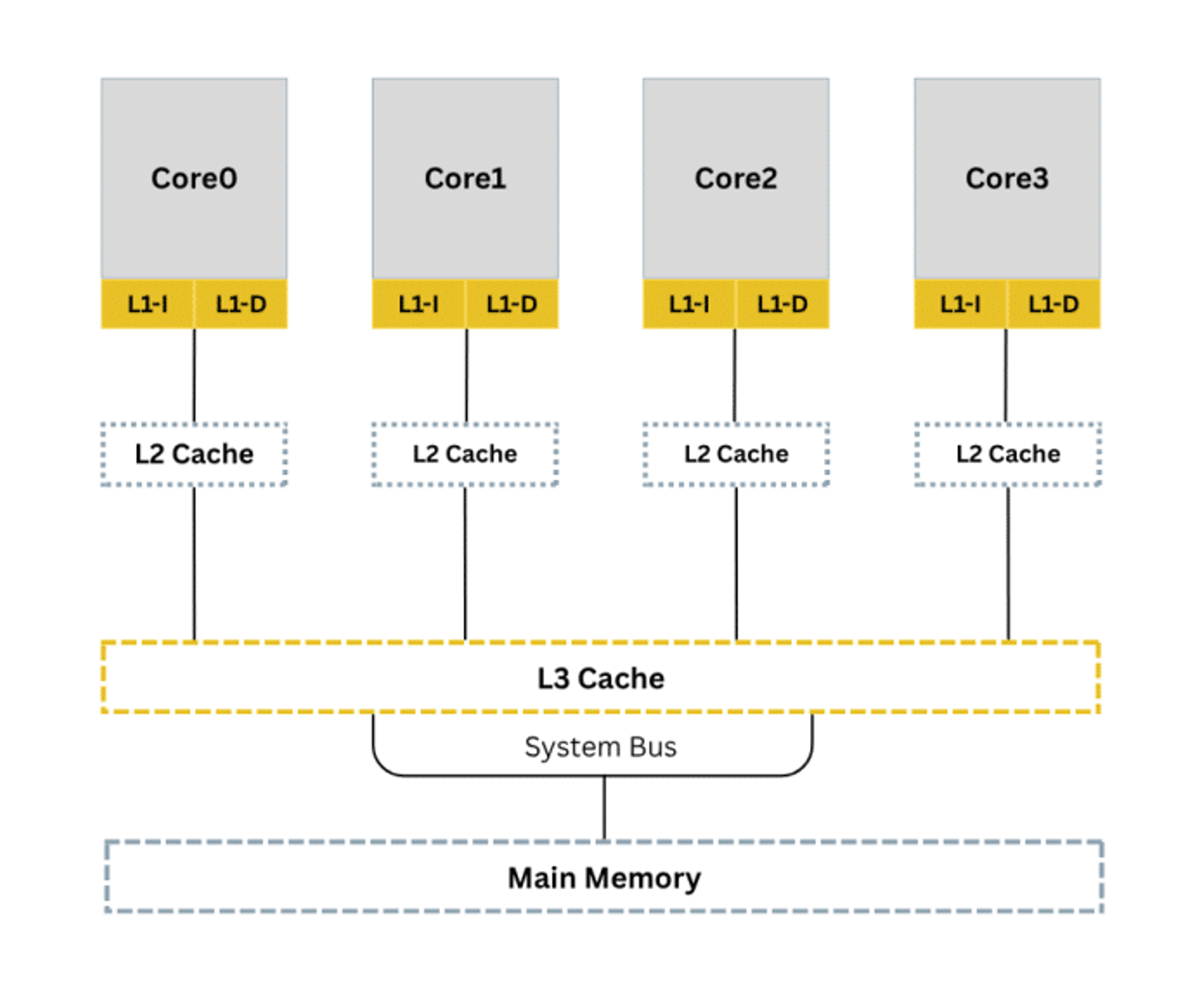

The diagram below shows how cache memory in a quad-core system is typically divided into L1, L2, and L3.

As developers, we choose which level to use based on the specific needs of our data.
L1 is the fastest but smallest, while L3 is largest and shared across multiple cores.

For this blog, we will focus on a dual-core system as we present ideas on how to trace and handle cache coherency problems when each core holds its own cache.

Detecting cache coherency problems

Cache coherency problems occur when several cores each have their own copy of the same data and access it at the wrong time. If one copy is changed, others may still use stale data, causing unpredictable behavior. Traditional debuggers show only main memory, not stale cached values.

Debugging with printf() can sometimes create “Heisenbugs,” where observing the system changes its timing.
Below is an animation showing how values on two cores diverge when cache is not handled:

Video Player

00:00

00:18

Overcoming cache coherency issues on Zephyr RTOS systems with SystemView with Ozone support

As shown in part 1, we must add instrumentation using SystemView to log system events. Initialize SystemView before adding event macros in key sections.

Enable debugging features in Zephyr

As a starting point, let’s configure Zephyr for multi-core debugging and tracing:

CONFIG_MP_MAX_NUM_CPUS=2CONFIG_DEBUG=yCONFIG_DEBUG_THREAD_INFO=yCONFIG_TRACING=yCONFIG_SEGGER_SYSTEMVIEW=yCONFIG_USE_SEGGER_RTT=y

Enable the cache-related macro:

CONFIG_CACHE_MANAGEMENT=y

Instrument the code for tracing

When two cores access the same variable without ordering guarantees, the result is unpredictable. This is a shared data consistency problem not a hardware cache coherency issue, which would require both cores to have caches. On the RT1170, only the Cortex-M7 has an L1 data cache while the Cortex-M4 does not. What we face here is a software-level race condition on shared memory, solved through atomic operations and memory barriers.

SystemView provides SEGGER_SYSVIEW_PrintfHost() for tracing without blocking the target unlike printf(), it writes through RTT and does not stall execution. The snippets below use this to observe shared data before and after each increment.

Attempt 1: Inconsistent shared data

Core 0:

#define STACKSIZE 1024#define PRIORITY  7 void core0_thread(void *p1, void *p2, void *p3){    while (1) {        shared_data++;  /* Not atomic — race condition */ #if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core0: shared_data = %d",                                   shared_data);#endif        k_msleep(10);    }} K_THREAD_DEFINE(core0_id, STACKSIZE, core0_thread,                NULL, NULL, NULL, PRIORITY, 0, 0);

Core 1:

#define STACKSIZE 1024#define PRIORITY  7 void core1_thread(void *p1, void *p2, void *p3){    while (1) {        shared_data++;  /* Not atomic — race condition */ #if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core1: shared_data = %d",                                   shared_data);#endif        k_msleep(10);    }} K_THREAD_DEFINE(core1_id, STACKSIZE, core1_thread,                NULL, NULL, NULL, PRIORITY, 0, 0);

Attempt 2: Consistent shared data

Core 0:

#define STACKSIZE 1024#define PRIORITY  7 atomic_t shared_data = ATOMIC_INIT(0x5); void core0_thread(void *p1, void *p2, void *p3){    while (1) {#if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core0: Pre-Increment:  %d",                                   atomic_get(&shared_data));#endif         atomic_inc(&shared_data); #if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core0: Post-Increment: %d",                                   atomic_get(&shared_data));#endif        k_msleep(10);    }} K_THREAD_DEFINE(core0_id, STACKSIZE, core0_thread,                NULL, NULL, NULL, PRIORITY, 0, 0);

Core 1:

#define STACKSIZE 1024#define PRIORITY  7 void core1_thread(void *p1, void *p2, void *p3){    while (1) {#if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core1: Pre-Increment:  %d",                                   atomic_get(&shared_data));#endif         atomic_inc(&shared_data); #if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core1: Post-Increment: %d",                                   atomic_get(&shared_data));#endif        k_msleep(10);    }} K_THREAD_DEFINE(core1_id, STACKSIZE, core1_thread,                NULL, NULL, NULL, PRIORITY, 0, 0);

Spinlock

static atomic_t lock = ATOMIC_INIT(0);  while (!atomic_cas(&lock, 0, 1)) { } shared_counter++;    atomic_clear(&lock);

Ensuring Memory Ordering: DMB

void core1_thread(void *p1, void *p2, void *p3){    while (1) {#if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core1: Pre-Increment:  %d",                                   atomic_get(&shared_data));#endif         atomic_inc(&shared_data);        __DMB();  /* Ensure write is visible to Core0                   * before execution continues         */ #if defined(CONFIG_SEGGER_SYSTEMVIEW)        SEGGER_SYSVIEW_PrintfHost("Core1: Post-Increment: %d",                                   atomic_get(&shared_data));#endif        k_msleep(10);    }}

Debugging workflow tips

• Step 1: Use SystemView to detect race conditions.
• Step 2: Use Ozone to inspect memory, registers, cache control, and coherency.

Zephyr cache APIs

Zephyr provides cache maintenance APIs including cache_data_flush_range() and cache_data_invd_range(). These are meaningful only on cores that have a data cache .On Cortex-M series, that includes the M7, M55, and M85. The Cortex-M4 has no data cache, so these calls are no-ops on that core.

On a platform like the i.MX RT1170 (M7 + M4), only the M7 side needs to call these APIs. The M7 flushes its cache after writing to shared memory, and the M4 can then read the updated value directly from main memory without stale data.he.

Up next: Inter-core messaging

In the next part of this series, we’ll discuss inter-core messaging.
